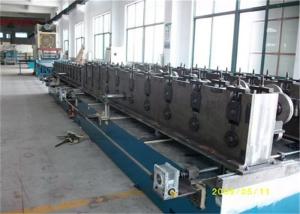

Automatic China Galvanized Perforated Steel Cable Tray Management Roll Forming Production Machine
Cable Tray Production Machine Main devices
a. Hydraulic decoiler
b. Main roll forming machine
c. Hydraulic shearing machine
d. Hydraulic station
e. Digital control cabinet
A. Hydraulic decoiler
Welded channel steel & steel plate frame
Hydraulic adjust screw shaft to make four arch leaves expand in sync Expansion range: φ460~φ520mm,
maximum loading weight: 3tons
Mechanical drag brake
B. Main roll forming machine
Welded section steel base, both sides are made of steel plate
Embossing rollers are made of Cr12, vacuum heat treated for HCR58~62.
Pressing rollers are made of 40Cr round steel, diameter at φ100mm, tempering and quenching treatment; 12 groups forming rollers; chain transmission
Pressing rollers are made of GCr15, outer diameter at φ160mm, after precision lathing for vacuum heat treated to hardness HRC55~58.
Driven by 15KW motor, 35 speed ratio cyciol pin gearbox, inverter control, speed adjustment range: 0~20m/min.
C. Hydraulic shearing machine
Welded steel plate frame
Blade’s material: forged Cr12MoV, rough lathing and heat treatment to hardness at HRC58~62, high precision grinding, linear cutting and etc.
With hydraulic cylinder at φ250x50mm, one set, maximum shear force at 80tons.
D. Hydraulic station
Hydraulic driving motor: 15KW; gear hydraulic pump: 16Mpa, volume: 16ml/r, rotary speed: 1500r/min, with air cooling system
E. Digital control operation cabinet
Inverter control for saving energy for user
Stable control; Innovance PLC; LCD screen display
Roll Forming Machine Product Feature:
They are all widely used in steel structure industry, decorating and fitting material industry,
physical
distribution and supermarket shelf industry, transportation industry, wiring industry, electrical
equipment industry, elevator industry and various projects using pipe industry.
Roll Forming Machine Components:
Roll forming machine consists of Uncoiler, guiding&leveling, Main roll forming system, hydraulic
cutting ,
Hydraulic station, PLC control system and output table.
Optional with Hydraulic Decoiler, Auto Stacker,Safe Cover,Pre-Cutting, Film Covering Device,
and so on.
Machine Parameter
| NO. | Project | Unit | Parameter | Remark |
1 | Material | Type | High strength steel | | |
| Strength of material sheet | Map | ≥350 | |
| Thickness of material sheet | mm | 1.2~2.0 | |
| 2 | Size of production | mm |
Reference the picture | |
| 3 | Production speed | m/min | Punching speed 4m/min
Forming speed 10m/min | |
| 4 | Material of roller | | GCr15 quenching treatment | |
| 5 | Drive type | | Gear | |
| 6 | Power | kw | About 75 | |
| 7 | Electric control system | | PLC variable frequency control | |
| 8 | Dimensions(Length*width*height) | m | 55X4X3.9 | |
