Two Waves Highway Guardrail Roll Forming Machine 12-15 M/Min Hydraulic Cutter

Name: Two Waves Highway Guardrail Roll Forming Machine 1215 MMin Hydraulic Cutter
Brand: BOSJ
Price: 1 USD

China Two Waves Highway Guardrail Roll Forming Machine 12-15 M/Min Hydraulic Cutter factory

Brand Name : BOSJ

Model Number : BOSJ-H

Certification : ISO,SGS,CE

Place of Origin : JIANGSU

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 sets per month

Delivery Time : 60 days

Packaging Details : wooden cases

Roller Material : GCR15

Roller Axis : 75mm

Waves : Two and Thire waves

Control Type : Auto

Power Supply : Hydraulic

Function : guardrail system

Contact Now

Ⅰ,Components for the Machine
The line includes in conic decoiler unit, feeding guiding platform, leveling system, shear
device, punching system, roll forming system, cutting equipment, hydraulic station, elec
controlling system and two supporters for product.

Ⅱ,Applicable material
Thickness is 3mm±0.2mm , width is 482+3mm, yield strength is 235Mpa, side bend less t
10mm( base on 5m), the sheet surface is not rusty, smooth.

Ⅲ,Main parameters
1, Forming speed: about 20m/min
2, Decoiler Capacity: 10 tons
3, Coil Inner diameter: 500mm,600mm
1, Coil out diameter: 1700mm
2, Shearing motor: 2 X 1.1 KW
3, Pump Motor: 18.5 KW
4, Main Motor: 45KW(6phases)
8, Total Power: about 65 KW.
9, Material of forming rollers: D2 with quenched treatment
10, Material of shaft: High quality 45# steel with heat treatment.
11, Material of cutter, die Cr12 mould steel with quenched treatment
12, Out size dimension: (L X W X H)27 X 6 X 1.8 M.
13, Total weight: about 50 tons.

PRODUCT PARAMETERS

Article No.	Item Name	Specification
2 waves highway guardrail roll forming machine
1	Material of panel	GI
2	Thickness of feeding material	3.0mm-4.0mm coil sheet
3	Roller station	18 stations
4	Shaft Diameter	100mm
5	Productivity	12-15 m/min
6	Rollers' material	Bearing steel
7	Shaft material	45# steel
8	Weight	10 ton
9	length	16 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	3 Tons
13	Motor	15kw*2
14	Driving way	Chain transmission
15	Chain size	2 inch*2
16	Cutting system	Hydraulic cutter

Two Waves Highway Guardrail Roll Forming Machine 12-15 M/Min Hydraulic Cutter

Product Tags:

cold forming machine

steel roll forming machine

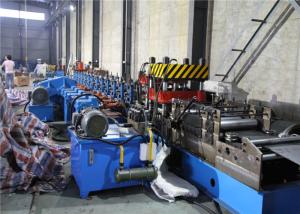

Two Waves Highway Guardrail Roll Forming Machine 12-15 M/Min Hydraulic Cutter Images
